T-Series & MSL / Automatic Tensioning



T-Series/Spring Loaded


The Universal Drive Tensioner Spring loaded T-series incorporates an adjusting slot for control tensioning and a serrated arm, permitting tensioning at any point on a 360º arc.
The "T" Series tensioner has a spring for a constant tension which is more practical for pulsating loads. The base is more practical for pulsating loads. The base is made of high-grade semi-steel casting, incorporating a needle bearing and ball bearing to eliminate binding on over-hung loads. A precision cut gear and rack combined with a spring enables the arm to work 90º in either direction.

The standard model will support a 22# load at the idler shaft center. If more capacity is desired, a heavier spring is available to support up to 44# which pivots 45º in either direction.



Model No. Use with Shaft No.* A B C D E F G H I J K L M App. Wt. Downloads
TM SO-2 1-1/2" 2-1/8" 1" 3" 2-1/2" 8-11/16" 7-1/2" 3-1/8" 2-1/16" 5" 4" 3/8" 4-13/16" 6.37 dwg dxf
SO-3 2-1/2" 3-1/8"
SO-4 3-1/2" 4-1/8"
* Idler shaft & set collar not included in tensioner unit. Must be ordered separately.




MSL / Spring Loaded

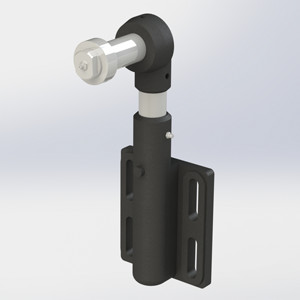

The MSL Tensioner, with a compression spring located in the base casting, is designed for drives with shock and pulsating loads. For every 28 pounds of force applied the spring will compress 1 inch. The tensioner will "cushion" and protect the drive from the damage caused by shock and pulsation. The idler head casting rotates 360 degrees and vertical adjustment is accomplished through 4 slots.

Model No. Use with Shaft No.* A B C D E F G H I J K L M N O App. Wt. Downloads
MSL SO-5 3-1/4" 4" 1-1/2" 3-3/16" 1-7/8" 6" 4-3/8" 7" 3" 2-5/8" 1-5/8" 5/8" 10" 1-5/8" 13/16" 18 dwg dxf
SO-5 5-1/4" 6"
