Cast Iron Flat Belt Flanged Pulley Idlers
|
|
|
|
|
Bronze & Needle Bearing Flanged Pulley Idlers
|
  |
|
| Part No. |
Part No. |
A |
B |
C |
D |
E |
F |
G |
I |
For Usewith IdlerShaft No. |
Bronze |
Needle |
Bronze
Blushed
Downloads |
Needle
Bearing
Downloads |
| Bronze Blushed |
Needle Bearing |
App. Wt. |
App. Wt. |
| P00 |
P00F |
1-3/8" |
5/8" |
1/2" |
1-1/8" |
7/16" |
-- |
5/8" |
-- |
S01 |
.25 |
.25 |
dwg |
dxf |
dwg |
dxf |
| P0 |
P0F |
1-3/4" |
13/16" |
1/2" |
1-3/8" |
9/16" |
0 |
13/16" |
0 |
S01 |
.32 |
.31 |
dwg |
dxf |
dwg |
dxf |
| PB |
PBF |
2-1/2" |
7/8" |
1" |
2-1/4" |
11/16" |
-- |
7/8" |
-- |
S02 |
.45 |
.45 |
dwg |
dxf |
dwg |
dxf |
| P1 |
P1F |
4-1/2" |
1-7/16" |
1" |
4" |
1-1/16" |
1/16" |
1-1/2" |
1/8" |
S02 |
3.12 |
3.00 |
dwg |
dxf |
dwg |
dxf |
| P2 |
P2F |
4-1/2" |
2-7/16" |
1" |
4" |
2-1/16" |
1/16" |
2-1/2" |
1/8" |
S03 |
4.75 |
4.62 |
dwg |
dxf |
dwg |
dxf |
| P3 |
P3F |
4-1/2" |
3-7/16" |
1" |
4" |
3-1/16" |
1/16" |
3-1/2" |
1/8" |
S04 |
6.00 |
5.75 |
dwg |
dxf |
dwg |
dxf |
| |
P4F |
7" |
5" |
1-1/2" |
6" |
4-1/2" |
1-1/8" |
4" |
1/8" |
S06 |
-- |
12.37 |
|
|
dwg |
dxf |
| |
P6F |
7" |
6-3/4" |
1-1/2" |
6" |
6-1/4" |
1-7/8" |
5" |
1/8" |
SO6 |
-- |
17.25 |
|
|
dwg |
dxf |
|
|
| |
| |
|
| |

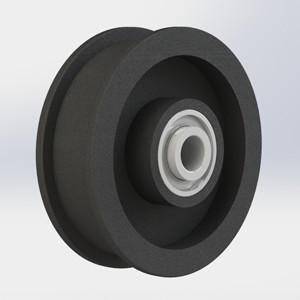

Ball Bearing Flanged Pulley Idlers
|
  |
|
| PartNo. |
A |
B |
C |
D |
E |
F |
G |
H |
For Use with Idler Stud No. |
App.Wt. |
Downloads |
| Ball Bearing |
| PBB |
2-1/2" |
7/8" |
.635/.640 |
2-1/4" |
11/16" |
-- |
.720 |
-- |
IS166 |
0.48 |
dwg |
dxf |
| P1B |
4-1/2" |
1-7/16" |
.635/.640 |
4" |
1-1/16" |
1/16" |
1-3/4" |
1/4" |
IS1662 |
3.2 |
dwg |
dxf |
| P2B |
4-1/2" |
2-7/16" |
.635/.640 |
4" |
2-1/16" |
1/16" |
2-3/4" |
1/4" |
IS1663 |
4.3 |
dwg |
dxf |
| P3B |
4-1/2" |
3-7/16" |
.635/.640 |
4" |
3-1/16" |
1/16" |
3-3/4" |
1/4" |
IS1664 |
5.0 |
dwg |
dxf |
| P4B |
7" |
5" |
1 |
6" |
4-1/2" |
1-1/8" |
4" |
1/8" |
IS1665 |
13.45 |
dwg |
dxf |
| P6B |
7" |
6-3/4" |
1" |
6" |
6-1/4" |
1-7/8" |
5" |
1/8" |
IS1666 |
19 |
dwg |
dxf |
|
|
| |
| |
|
|
|
|
|
