X-Series / Floating Mount Tensioners
For Reversible Drives

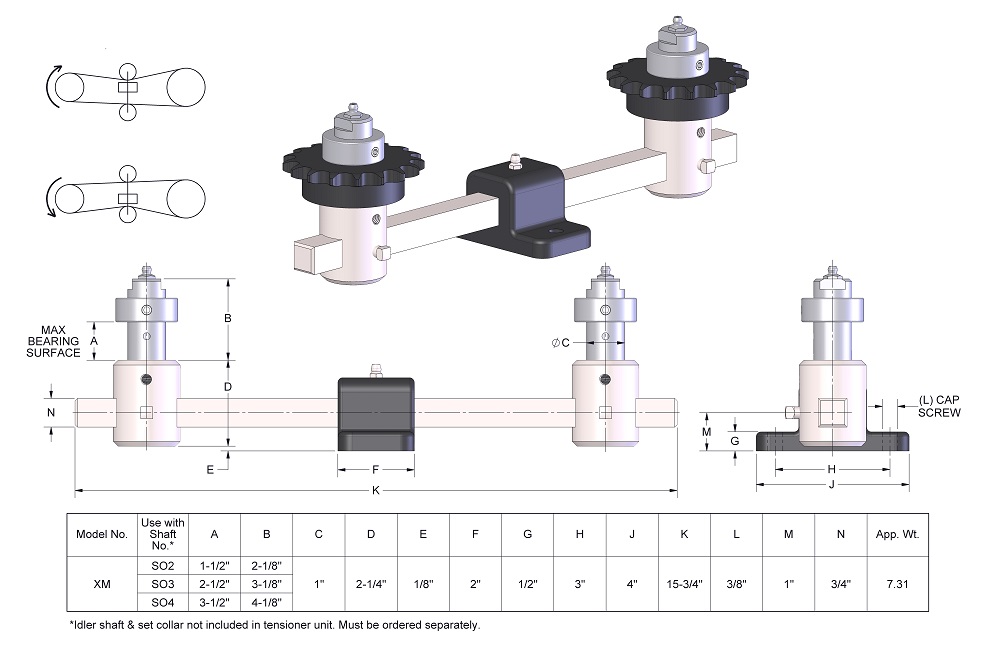

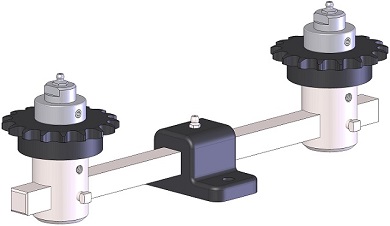

The "X" series Universal Drive Tensioners utilize a floating mount principle to permit a straight line pull between driver and driven pulleys, regardless of drive direction, yet maintaining the initial tension preset for the drive. Floating action allows the tensioner to automatically accommodate the change in geometry when driving direction is reversed.

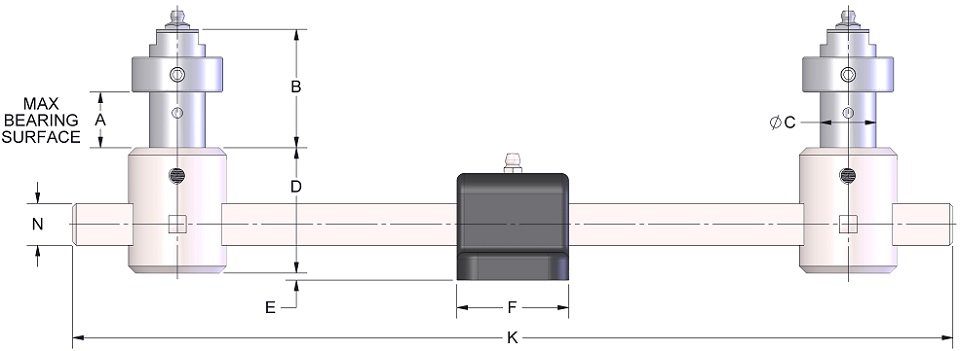

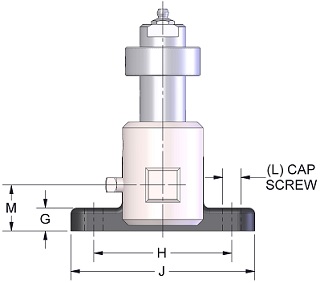

| Model No. | Use with Shaft No.* | A | B | C | D | E | F | G | H | J | K | L | M | N | App. Wt. | Downloads | |||
| XM | SO2 | 1-1/2" | 2-1/8" | 1" | 2-1/4" | 1/8" | 2" | 1/2" | 3" | 4" | 15-3/4" | 3/8" | 1" | 3/4" | 7.31 | dwg | dxf | step | igs |
| XM | SO3 | 2-1/2" | 3-1/8" | 1" | 2-1/4" | 1/8" | 2" | 1/2" | 3" | 4" | 15-3/4" | 3/8" | 1" | 3/4" | 7.31 | dwg | dxf | step | igs |
| XM | SO4 | 3-1/2" | 4-1/8" | 1" | 2-1/4" | 1/8" | 2" | 1/2" | 3" | 4" | 15-3/4" | 3/8" | 1" | 3/4" | 7.31 | dwg | dxf | step | igs |
*Idler shaft and set collar not included in tensioner unit. Must be ordered separately.
