Tapered Idler Bushings

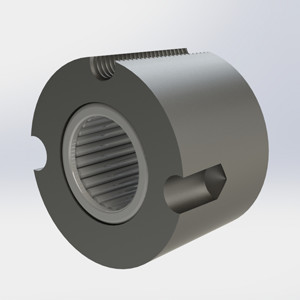

Needle Bearing Universal Tapered Idler Bushings

For use with any rim accommodates a Tapered Bushing. Furnished with Needle Bearings and Fasteners.
Part No. A B C Bold Cir. D App. Wt. Downloads
1610-F 2-1/4" 1" 1" 2-1/8" .68 dwg dxf
1615-F 2-1/4" 1-1/2" 1" 2-1/8" 1.00 dwg dxf
2012-F 2-3/4" 1-1/4" 1" 2-5/8" 1.50 dwg dxf
2517-F 3-3/8" 1-3/4" 1-1/2" 3-1/4" 2.75 dwg dxf




Ball Bearing Universal Tapered Idler Bushings

For use with any rim accommodates a Tapered Bushing. Furnished with Ball Bearings and Fasteners.
Part No. A B C D App. Wt. Downloads
1610-B 2-1/4" 1" .625 2-1/8" .9 dwg dxf
1615-B 2-1/4" 1-1/2" .625 2-1/8" .8 dwg dxf
2012-B 2-3/4" 1-1/4" .750 2-5/8" 1.6 dwg dxf



Typical Installation of a Tapered Idler Bushing
