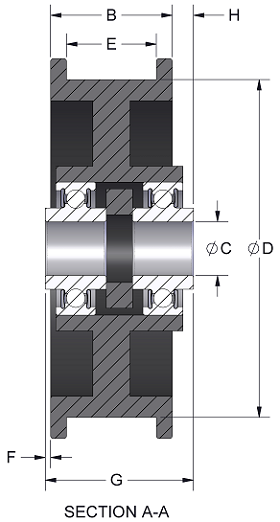

Ball Bearing Flanged Pulley Idlers
| Part No. Ball Bearing |
A | B | C | D | E | F | G | H | For use with Idler Shaft No. |
App. Wt. | Downloads | |||
| PBB | 2-1/2" | 7/8" | .635/.640 | 2-1/4" | 11/16" | -- | .720 | -- | IS166 | .48 | dwg | dxf | step | igs |
| P1B | 4-1/2" | 1-7/16" | .635/.640 | 4" | 1-1/16" | 1/16" | 1-3/4" | 1/4" | IS1662 | 3.20 | dwg | dxf | step | igs |
| P2B | 4-1/2" | 2-7/16" | .635/.640 | 4" | 2-1/16" | 1/16" | 2-3/4" | 1/4" | IS1663 | 4.30 | dwg | dxf | step | igs |
| P3B | 4-1/2" | 3-7/16" | .635/.640 | 4" | 3-1/16" | 1/16" | 3-3/4" | 1/4" | IS1664 | 5.00 | dwg | dxf | step | igs |
| P4B | 7" | 5" | 1" | 6" | 4-1/2" | 1-1/8" | 4" | 1/8" | IS1665 | 13.45 | dwg | dxf | step | igs |
| P6B | 7" | 6-3/4" | 1" | 6" | 6-1/4" | 1-7/8" | 5" | 1/8" | IS1666 | 19.00 | dwg | dxf | step | igs |
