Ball Bearings A-Style Sprocket Nylon Composite

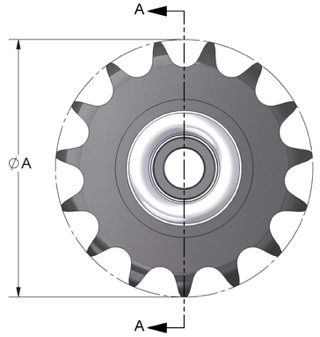

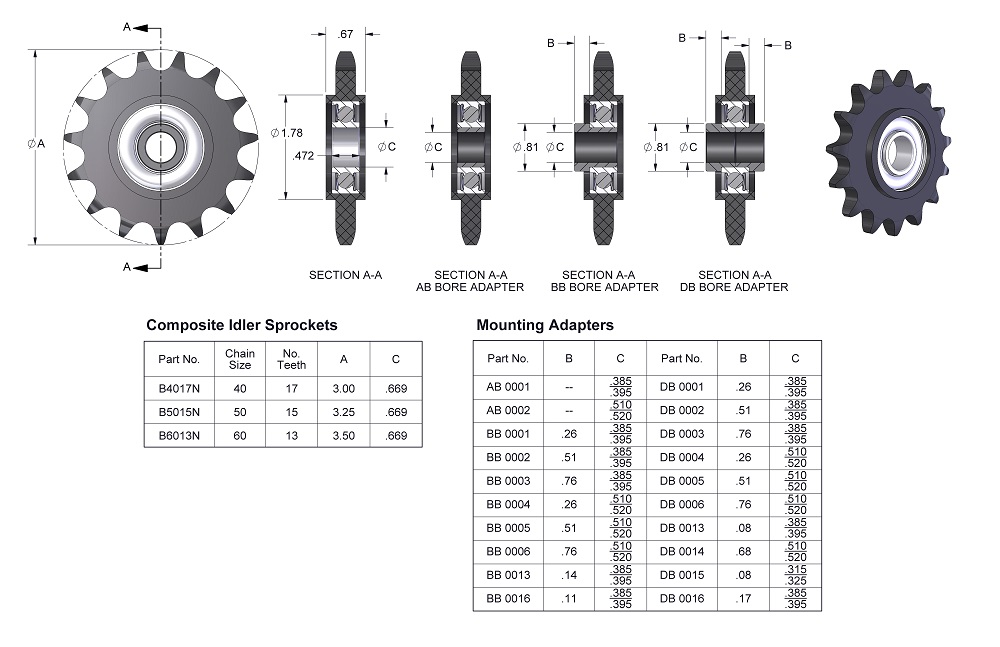

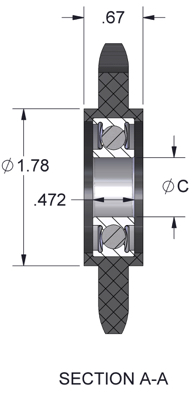

Composite Idler Sprockets
| Part No. | Chain Size | No. Teeth | A | C | Downloads | |||
| B4017N | 40 | 17 | 3.00 | 0.669 | dwg | dxf | step | igs |
| B5015N | 50 | 15 | 3.25 | 0.669 | dwg | dxf | step | igs |
| B6013N | 60 | 13 | 3.50 | 0.669 | dwg | dxf | step | igs |

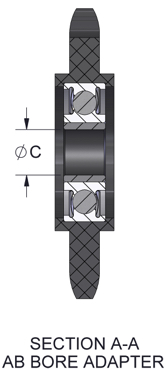

Mounting Adapters
| Part No. | B | C | Downloads | |||
| AB0001 | -- | .385 .395 |
dwg | dxf | step | igs |
| AB0002 | -- | .510 .520 |
dwg | dxf | step | igs |

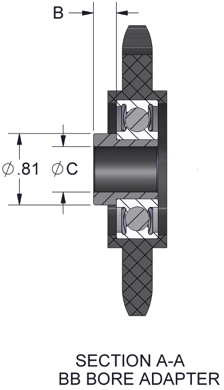

| BB0001 | 0.26 | .385 .395 |
dwg | dxf | step | igs |
| BB0002 | 0.51 | .385 .395 |
dwg | dxf | step | igs |
| BB0003 | 0.76 | .385 .395 |
dwg | dxf | step | igs |
| BB0004 | 0.26 | .510 .520 |
dwg | dxf | step | igs |
| BB0005 | 0.51 | .510 .520 |
dwg | dxf | step | igs |
| BB0006 | 0.76 | .510 .520 |
dwg | dxf | step | igs |
| BB0013 | 0.14 | .385 .395 |
dwg | dxf | step | igs |
| BB0016 | 0.11 | .385 .395 |
dwg | dxf | step | igs |

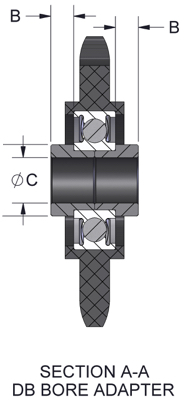

| DB0001 | 0.26 | .385 .395 |
dwg | dxf | step | igs |
| DB0002 | 0.51 | .385 .395 |
dwg | dxf | step | igs |
| DB0003 | 0.76 | .385 .395 |
dwg | dxf | step | igs |
| DB0004 | 0.26 | .510 .520 |
dwg | dxf | step | igs |
| DB0005 | 0.51 | .510 .520 |
dwg | dxf | step | igs |
| DB0006 | 0.76 | .510 .520 |
dwg | dxf | step | igs |
| DB0013 | 0.08 | .385 .395 |
dwg | dxf | step | igs |
| DB0014 | 0.68 | .510 .520 |
dwg | dxf | step | igs |
| DB0015 | 0.08 | .315 .325 |
dwg | dxf | step | igs |
| DB0016 | 0.17 | .385 .395 |
dwg | dxf | step | igs |
