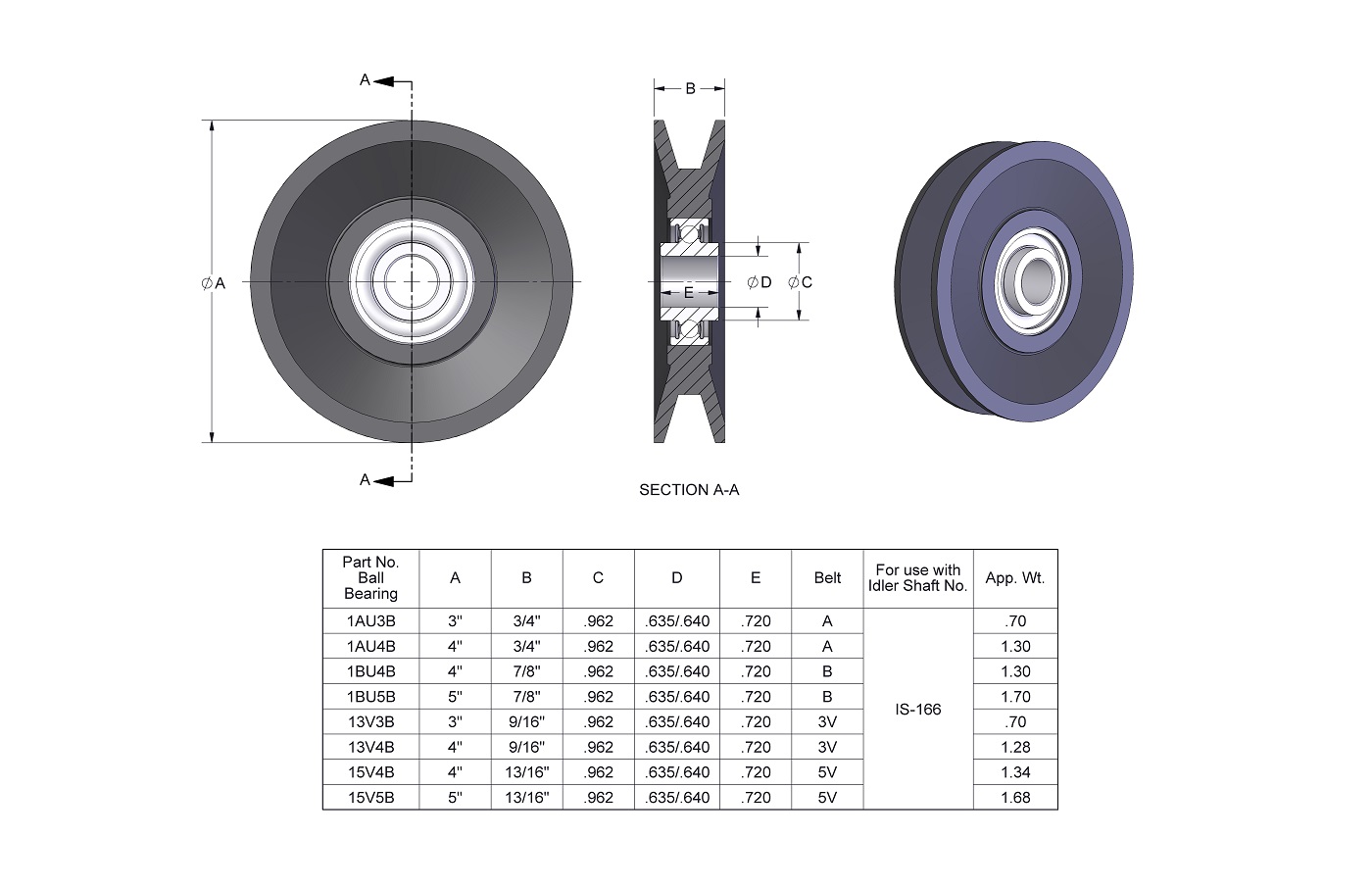

Ball Bearing Cast Iron V Belt Idler Pulleys
| Part No. Ball Bearing | A | B | C | D | E | Belt | For use with Idler Shaft No. | Appt. Wt. | Downloads | |||
| 1AU3B | 3" | 3/4" | 0.962 | .635/.640 | 0.720 | A | IS166 | 0.70 | dwg | dxf | step | igs |
| 1AU4B | 4" | 3/4" | 0.962 | .635/.640 | 0.720 | A | IS166 | 1.30 | dwg | dxf | step | igs |
| 1BU4B | 4" | 3/4" | 0.962 | .635/.640 | 0.720 | B | IS166 | 1.30 | dwg | dxf | step | igs |
| 1BU5B | 5" | 7/8" | 0.962 | .635/.640 | 0.720 | B | IS166 | 1.70 | dwg | dxf | step | igs |
| 13V3B | 3" | 9/16" | 0.962 | .635/.640 | 0.720 | 3V | IS166 | 0.70 | dwg | dxf | step | igs |
| 13V4B | 4" | 9/16" | 0.962 | .635/.640 | 0.720 | 3V | IS166 | 1.28 | dwg | dxf | step | igs |
| 15V4B | 4" | 13/16" | 0.962 | .635/.640 | 0.720 | 5V | IS166 | 1.34 | dwg | dxf | step | igs |
| 15V5B | 5" | 13/16" | 0.962 | .635/.640 | 0.720 | 5V | IS166 | 1.68 | dwg | dxf | step | igs |
